Aluminum Roller Shutter Door Slats
| Drawing | Model No. | Size(mm) | Thickness(mm) | kg/sqm | kg/m |

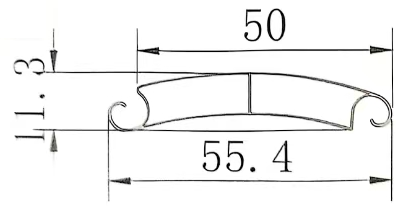

 | ALD50 | 50 | 0.4/0.5/0.6/0.7 | 3.5/3.8/4.2/5.0 | 0.18/0.19/0.21/0.26 |

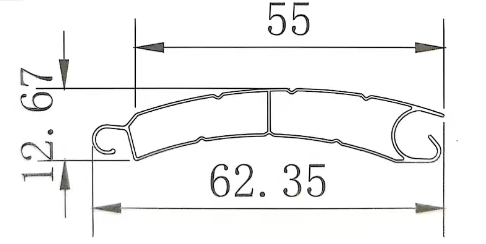

 | ALD55 | 55 | 0.5/0.6/0.7 | 4.0/4.5/5.0 | 0.22/0.25/0.28 |

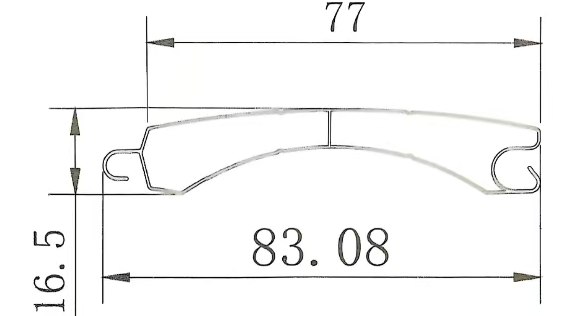

 | ALD77 | 77 | 0.5/0.55/0.6/0.7/0.8/0.9/1.0/1.1 | 4.0/4.3/4.6/5.2/5.8/6.3/7.2/7.6 | 0.32/0.34/0.37/0.41/0.46/0.50/0.56 |

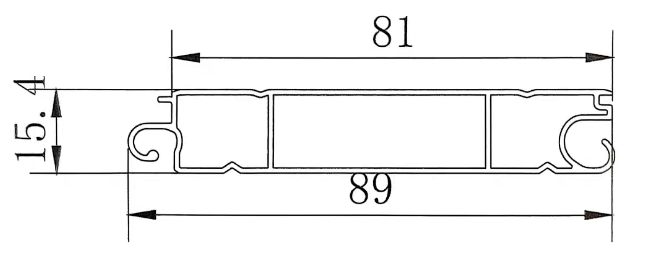

 | ALD80 | 80 | 0.75/1.0 | 6.5/8.5 | 0.56/0.71 |

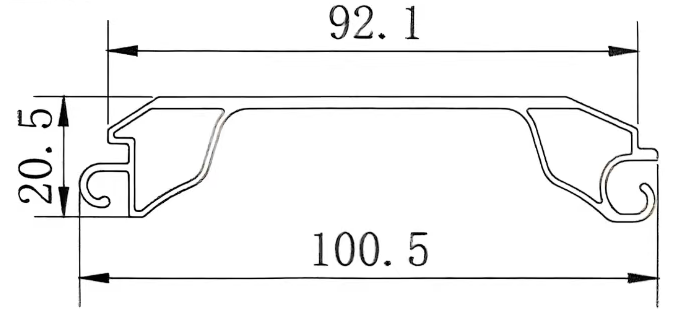

 | ALD92 | 92 | 2.0 | 9.5 | 0.86 |

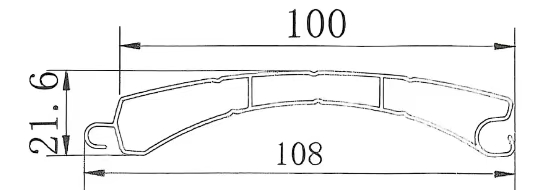

| ALD100 | 100 | 0.8/0.9/1.0/1.2/1.5 | 6.0/6.5/7.0/8.5/10.0 | 0.6/0.66/0.70/0.89/1.08 |

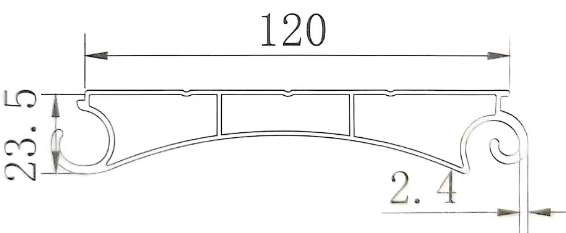

 | ALD120 | 120 | 1.0 | 11.5 | 1.4 |
